COMPACT LOGIX CONTROLLER

CM284-L1





CM 284 L1 Data Sheet

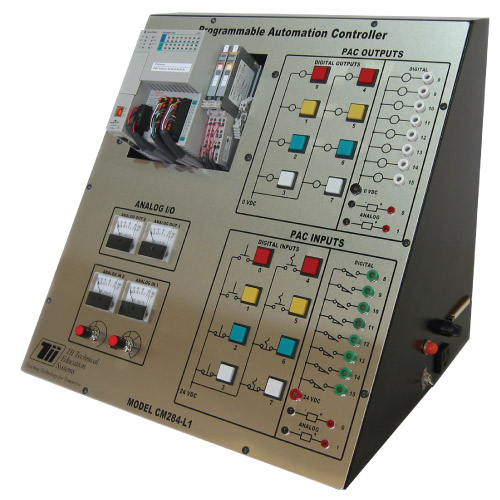

The CM284-L1 is a complete industrial-based PLC training system featuring Allen-Bradley’s RSLogix 5000 programming software. The Compact Logix platform is a powerful series of programmable automation controllers. This trainer will allow learners to develop competence in operating, programming, and troubleshooting a true industrial PLC.

The Compact Logix controller is programmed using relay ladder, function block diagram, sequential function block, or structured text programming using Windows-based RSLogix 5000 programming software. This system has a flexible design and expansion capabilities like adding sensor inputs, PID process control, robotic interfacing, or other advanced applications. These performance features allow for a PLC learning experience that is relevant for today’s industrial employers.

Our training system is accompanied by an instructor’s guide as well as a student manual. This manual is a comprehensive student resource, featuring detailed laboratory exercises which familiarize the trainee with PLC operation, automation connectivity via Ethernet communications, and industrial applications. The curriculum begins with basic wiring concepts and quickly moves through circuits, logic, and programming. Additional units focus on troubleshooting and special features of the Allen-Bradley Compact Logix.

  • Easy access to the PLC digital and analog input / output terminals with banana jack connectors
  • Rapid setup and testing of wiring changes
  • Digital push-button switches and lights
  • Analog potentiometers and panel meter displays
  • User-identified external devices
  • Built-in Ethernet communications.

Specifications

Workstation Specifications:

  • Installed in a 16-gauge fabricated steel “wedge shaped” cabinet
  • Components are mounted on a 16-gauge brushed stainless steel panel
  • All features of the panel are silkscreened for easy identification
  • Workstation is mounted into cabinet for convenient interfacing with other trainers
  • Power-on toggle switch with light indicator
  • One amp system fuse protection is located along the cabinet side

Panel Components:

  • 8 push-buttons with colored bezels:
    • 2 momentary / normally open

    • 2 momentary / normally closed

    • 2 latching / normally open

    • 2 latching / normally closed

  • 8 indicator lights prewired and addressed
  • 20 sets of female connectors for interfacing to external devices using the universal connecting patch cord / banana jack system
  • 2 potentiometers
  • 4 panel meters
  • Optional fault insertion back panel

Allen-Bradley Compact Logix Specifications:

  • Processor Memory: 5370 L1 CPU with 384K user memory, other CPUs and memory available
  • Digital I/O: 16 Inputs, 16 Outputs
  • Analog I/O: 4 Inputs, 2 Outputs
  • Chassis: Modular I/O
  • Power Backup: No battery required
  • Memory Backup: FLASH
  • Controller Tasks: Integrated Architecture with optional Motion Control support for two axes
  • Programming: RS Logix 5000 Software – relay ladder, function block diagram, structured text, sequential function block
  • Communication: Ethernet and RS-232 ports
  • High Speed Counters: 4
  • Analog Capability: PID
  • Certification: U.L. Listed / CSA Approved / CE
  • Warranty: One year

RSLogix5000 Software:

  • 64-bit Windows-based
  • Offline/online programming
  • Graphical I/O configuration
  • Program reporting and documentation
  • Automatic instruction addressing, block transfer placement, and tag generation
  • USB port for downloads
  • Advanced diagnostics
